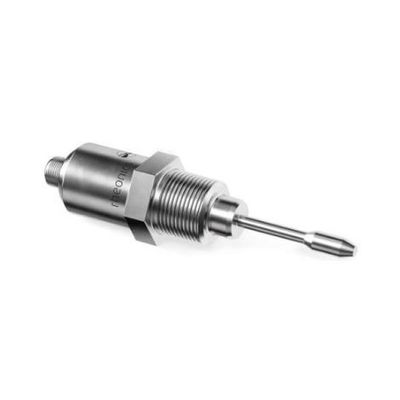

Rheonics - Model SRV -Wide-range Inline Process Viscometer
Wide-range inline process Viscometer In-line, online, real-time fluid viscosity. Compact form-factor for simple installation. Real-time, stable, repeatable and reproducible measurements in Newtonian & non-Newtonian fluids. Track viscosity change over wide range with one sensor. All metal (316L Stainless Steel) construction. Completely insensitive to mounting conditions. Built in fluid temperature measurement. Operational to 500 bar and 300°C (7500 psi, 575°F). Threaded, flanged and sanitary process fittings. Easy to clean, no maintenance or re-configurations needed for scaling across the factory.
All 316L stainless steel wetted parts
Hermetically sealed, metal-metal process sealing – no elastomer needed.
Repeatable, Reproducible
Newtonian, non-Newtonian, Single and Multi-phase fluid viscosity monitoring.
Wide viscosity range
- Air to 50,000+ cP viscosity
- Single instrument for full range viscosity measurement.
Built-in fluid temperature measurement
Excellent cross-correlation between temperature and viscosity. Compensated viscosity output.
Fluid measurements
- Viscosity Range : 0.4 to 250,000+ cP
- Viscosity Accuracy : 5% of reading (standard)
- 1% & higher accuracy available
- Reproducibility : Better than 1% of reading
- Temperature : Pt1000 (DIN EN 60751)
Operational conditions
- Process Fluid Temperature : -40 up to 300 °C (575°F)
- Ambient Temperature : -40 up to 150 °C
- Pressure Range : up to 7,500 psi (500 bar)
- The rheonics SRV fluid viscometer measures viscosity by means of a torsional resonator, one end of which is immersed in the fluid under test.
- The more viscous the fluid, the higher the mechanical damping of the resonator. By measuring the damping, the product of viscosity and density may be calculated by rheonics’ proprietary algorithms.
- The resonator is both excited and sensed by means of an electromagnetic transducer mounted in the sensor’s body.
- Damping is measured by the rheonics patented sensing and evaluation electronics and stable, high accuracy and repeatable readings are obtained based on rheonics’ proven gated phase-locked loop technology.
Small Form Factor
Fits in your palm but more robust than other online fluid viscometers.
Easy installation
Install in existing ports with threaded, flanged, and other process fittings. Available with standard and custom process fittings.
Easy integration
User friendly electrical connections without any screws. Programming needs at minimum with industry standard protocols.
Highly immune
Combination of patented mechanical and electrical design with advanced noise cancellation electronics gives high accuracy in high EMI, vibrations.
Pressure
upto 7500 psi (500 bar)
High-pressure viscosity monitoring of your process fluids
Temperature
-40°C to 300°C (575°F)
High-temperature operation in tanks, process pipe, reactors
Viscosity Range
0.5 to 50,000+ cP
Outputs in centipoise, centistokes (cSt), Pa.s, Saybolt, cup seconds and other viscosity units
Fluid Types
Newtonian non-Newtonian Single phase Multi-phase
