Windmills

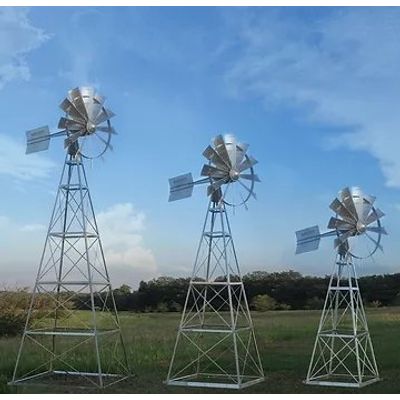

The Becker Windmills System offers the most powerful aeration on the market. Our windmill aeration system reduces stagnant water and foul odors, improves water quality, creates an oxygenated environment for fish and offers a pleasant swimming/recreational area. Our diffusers can sit at the deepest point allowing oxygen to circulate throughout the entire pond, keeping thermal stratification at bay and providing the healthy environment needed for fish and people alike.
The Blades
The 12 tapered blades, attached to a large, 72" diameter fan wheel, are engineered to start turning at wind speeds as low as 5 mph. They also develop high power in strong winds.
The tail design keeps the windmill facing directly into the wind. When wind speeds reach 30 mph, or higher, the automatic over-speed protection forces the fan wheel to turn away from the direct wind.
In conjunction with the 72" blade assembly, the high pressure diaphragm compressor will pump 60% more air into your water than other brands. It pumps 2.4 cfm in a 9 mph wind, 3.2 cfm in 15 mph winds and will begin operating in
a 2-3 mph breeze.
Each of our towers are constructed out of 16 gauge galvanized steel and also have 6-bolt anchor stake clamps. Both providing strength and durability.
Along with its efficiency, the reinforced diaphragm is die-cut for accuracy and longevity. Reducing the amount of time need for replacement and/or maintenance.
The crankshaft is crafted with high-strength 1045 TGP steel. The bearings are permanently grease-sealed and designed for heavy load capacity.
- Made in the USA
- Engineered for easy assembly and minimal maintenance
- 5 Year limited warranty
- Pond aeration without the use of electricity
- Windmills can sit up to 1000 feet away from the pond`s edge
Overspeed Protection
Our windmills feature built-in overspeed protection during extreme wind events, where winds reach 30 mph or higher. They can generate air in low wind conditions and max air out in high wind events.
The air compressor, blade assembly and tail assembly are properly balanced over the top of the tower, allowing the head assembly to easily find the direction of the wind.
Longevity & Optimal Performance
The compressor is a direct drive diaphragm pump. The diaphragm is reinforced neoprene that has been die-cut for accuracy and longevity. Offering a 60% larger piston and diaphragm assembly than competitors, along with the 72" blade assembly, it will pump more air into your water through a reusable filter.
Stability
The Becker Windmills` design, made of galvanized steel "X" bracing and angles, mimics old-style water pump windmills. Our towers feature four legs and 6-bolt anchor stake clamps that provide a complete stability system.
The 16 foot and taller units include tower hinges which allow the windmill to be lowered for easy inspection and maintenance.
Freeze Control
The optional Freeze Control Unit monitors the airline, keeping excessive pressure from building up in the compressor. During the winter, it allows for aeration and will release an alcohol agent to keep the line from freezing.
