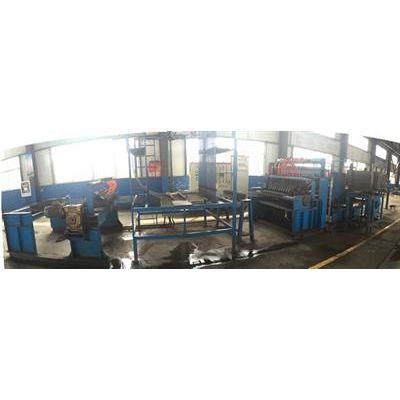

Model GWC-2400 -Wire Mesh Welding Machine
Specification: Model: GWC-2400. Wire diameter: 5-12mm. Max mesh width: 2400mm. Max mesh length: no limit. Grid size: 50-400mm adjustable.
Most popular related searches
- Line wire spacing: 100-400mm (multiple of 50)
- Cross wire spacing: 50-300mm, step-less adjustable
- Max welding capacity: 12+12mm
- Max welding speed: ~60 row/min
- Max welding spots: 24
- Wire feeding method(cross wire/line wire): pre-cut/off-coil
- Material: carbon steel, stainless steel, galvanized steel
- Voltage: 380V, 50/60Hz
- Power Capacity: 1200KVA (can be reduced by batch welding)
- Compressed air: 3 m³/min
- Air pressure: 0.8MPa
- Cooling: water cooling
- Dimensions(LWH): ~30*5*2.5m
- Weight: ~12T
- 1. High speed
- 2. High stability based on years of experience in resistance welding
- 3. Easy operation with touch screen
- 4. Compatible welding: capable of welding cold rolled ribbed wire, cold drawn wire, hot rolled ribbed wire (after straightened), hot rolled plain wire, stainless steel wire, galvanized wire, etc.
