iMatrix - Model NEO-1D -Wireless Temperature and Humidity Sensor with Display and Data Logging

• Get 24 hours a day monitoring with real-time alerts, logs, and reports
• Connect to iMatrix Cloud for World Wide Access
• Manage multiple sensors in multiple locations
• Set and receive alerts directly to smartphone or optionally use the Wi-Fi Micro gateway (sold separately)
• Organize  thousands of sensors with multiple groups & locations
• Upload sensor data to the iMatrix Cloud automatically in real-time  with iMatrix SensorMonitor Smartphone App
• Setup sensors in one step – scan QR code with App and you’re monitoring

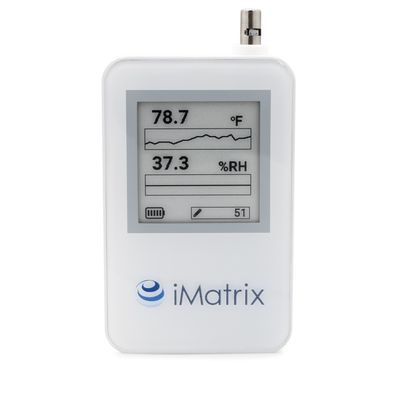

Wireless Temperature and Humidity Sensor with Display
NEO-1D is a sensor and a data logger with a display that can wirelessly monitor temperature, humidity, VPD, Heat Index, Dew Points for up to 3+ years on battery power.

The NEO-1 provides the ideal solution for monitoring climate-sensitive environments where it offers 24 hours a day monitoring, real-time alerts, logs, and reports.

• Temperature
• Humidity
• Heat Index
• Dew Point
• VPD
• Bluetooth 5.2
• Mesh Technology
• OTA Firmware Updates

Device type: Temperature and Humidity Sensor
Temperature range: -4°F to 140°F (-25°? to 60°?)
Humidity range: 0% to 100%
Dimensions: 3.19 x 1.77 x 0.87in (81 x 45 x 22mm)
Weight: 2.13 oz (60.5 grams)
Waterproof rating: IP66 (waterproof, dust proof)
Broadcasting range: 328 feet (100 meters)
Battery Size: 1200 mAh
Battery life: Up to 3+ years
Display: E-ink display screen
Features:

• Based on BLE technology
• Measures, stores, and uploads temperature and humidity readings
• Stores up to 6 months of data
• Upgradable to Massive Mesh

Model: Neo-1D
Measures: Temperature, Humidity, Heat Index,Dew Point, Air VPD
Network Type: Bluetooth Low Energy
EMC Tests: CE & FCC
BLE: Bluetooth Cert ( EPL 0.3.2019)
Water: IP66 ( waterproof , dust  proof)
Display: E-Paper Display
Data Storage on Unit: 100000 + Ext flash
Battery Size: 1200 mAh (ER14250)
Size: 73 x 45 x 22 mm
Typical Temp  Accuracy: +/- 0.2°C@ 0-90°C; Range : -25-+60°C
Estimated battey ife:  3 + Years (Depending on User modes)
Tx Power: 4 dBM
CE regulations: Yes
