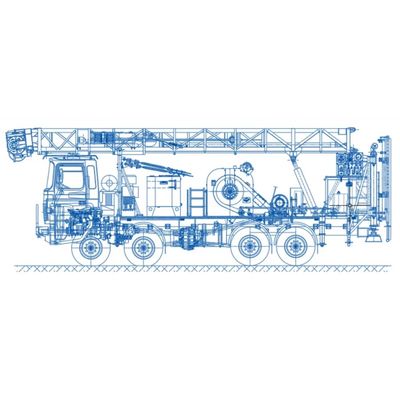

Upet - Model TW 40 CC A4 -Workover Rig
FromUpet SA
The mobile rigs are intended for repair vertical and inclined wells for oil, gas, geothermal, salt extraction. The presented technical data are basic specifications that can be adapted to clients’ individual requirements.
Most popular related searches
- Number of lines in maneuvering system / of the travelling block 6
- Maximum rated static hook load ( 6 lines ) 393 KN, ( 44 short tons, 40 tf )
- Power rating 175 HP
- Power block Diesel engine
- CATERPILLAR C 9.3B EU 310 kW ( 416 CP ) / 2200 rpm Hydromechanical transmission CATERPILLAR CX31- P600
- Mast height ( from the ground - under the crown block beam ) 17,2 m
- Length of tubing handled Single stands 9 …. 11 m
- Rig floor height 0.5 ... 2.66 m
