Filter-1 - Model Weldtron 2000 - ...

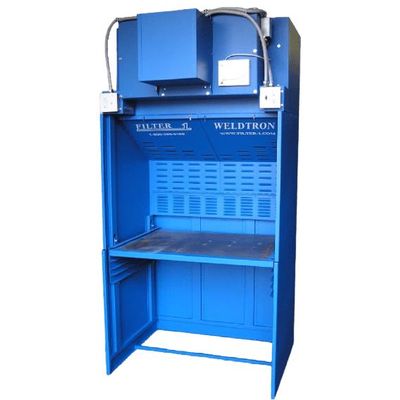

Filter-1 - Model Weldtron 2000 -Workstation

FromFilter 1 Clean Air Consultants, Inc.

SHARE

Panel Filter Workstations for Schools & Welding Labs .Ultimate Solution for Welding Training.With its powerful capture velocity and edge-to-edge backdraft inlet, the Filter 1 Weldtron 2000 effectively removes welding smoke and fume, providing protection and comfort for students and instructors in the training lab. In addition, the Weldtron 2000 features user-friendly operation, safety, space economy, and outstanding energy efficiency.

Most popular related searches

backdraft table

downdraft table filter

Designed for Safety: Protecting the Student`s Well-Being

The Filter 1 Weldtron backdraft welding table removes fumes from the student`s breathing zone with a generous airflow of 2000 CFM. The state-of-the-art filters are designed to last an entire school year without loss of airflow or servicing to insure worry-free capture and filtration of the hazardous fume produced by welding.

Other special safety features include:

Shielded sides to prevent eye-damaging flashes or showers of sparks that could otherwise injure fellow students.
Insulated table: the work surface of the Weldtron is rubber-mounted for insulating against any extraneous welding currents and protecting against damage to the unit.
Ground fault plugs for electric hand tools or extra lighting.

Maximizing the Lab Set-Up

The Filter 1 Weldtron 2000 is designed to optimize comfort and effectiveness of the training process, easily adapting to the requirements of the classroom, the students, and the welding tasks:

Controlling the Costs

Engineered with an eye to cost-effectiveness, the Filter 1 Weldtron 2000 makes the weld training budget go a long way in both capital equipment and ongoing operation. The unit cost is lower, the installation cost is much lower and even the operating cost is significantly lower due to energy efficiency:

Airflow (CFM) 2000
Motor 1 HP, 1750 rpm TEFC w/ Overload Protection
Electrical 110/1/60v 11.4 amps, (2) GFI Duplex Receptacles
On/Off Switch Included
Standard Filters Spark-resistant 24"x24"x2" MERV 13 Disposable Panel Filters (three filters in series) 18 sq. ft. filter media, each; qty: 12, 216 sq. ft. total
Pressure Guage (Indicates need for filter replacement) Included
Noise Level (dBA) 72/73
Blowers 400/800 FPM
Construction Welded, heavy gauge welded carbon steel w/ industrial acrylic enamel paint throughout
Work Surface 3`Dx4`W, 12 ga. carbon steel Isolated from cabinet w/ 4 rubber grommets Adjustable from 28" to 36" height
Lighting (2) High-efficiency, 26 watt compact fluorescent producing 100 watt equivalent, each

Airflow (CFM): 2000
Motor: 1 HP, 1750 rpm TEFC with overload protection
Electrical: 110/1/60v 11.4 amps, (2) GFI duplex receptacles
On/Off Switch: Included
Standard Filters: Spark-resistant 24"x24"x2" MERV 13 disposable panel filters (three filters in series), 18 sq. ft. filter media, each; qty: 12, 216 sq. ft. total
Pressure Gauge: Included (indicates the need for filter replacement)
Noise Level (dBA): 72/73
Blowers: 400/800 FPM
Construction: Welded, heavy gauge welded carbon steel with industrial acrylic enamel paint throughout
Work Surface: 3`Dx4`W, 12 ga. carbon steel isolated from cabinet with 4 rubber grommets, adjustable from 28" to 36" height
Lighting: (2) High-efficiency, 26-watt compact fluorescent, producing 100-watt equivalent, each
