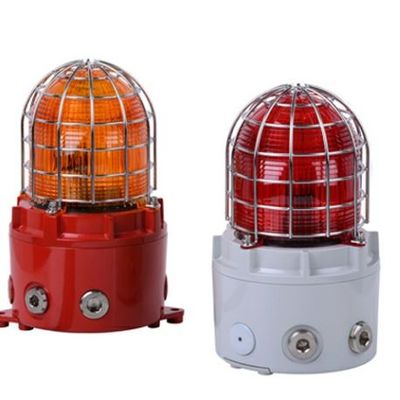

Conspec Controls - Model D1xB2X10 - 10J -Xenon Strobe Beacon Warning Light
Approved to UL1638 and CAN/ULC S526 for fire alarm use the D1xB2X10 beacons produce a high output Xenon flash required for effective signalling in environments with elevated levels of ambient light. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The robust enclosure features a threaded flame path, four cable entries. Mounting options include surface via integrated lugs, pendant or by addition of optional multi direction stainless steel bracket. SIL1 compliant to IEC61508 (2010) as standard – SIL2 version available.
The lightweight, marine grade, enclosure has been designed to create the optimal fire signal for ADA compliant, hearing impaired applications. Its innovative construction includes both conduit or surface mounting capabilities – without the need for any additional accessories. For complete flexibility an optional stainless-steel bracket enables the explosion proof warning light to be rotated and positioned in any orientation. Multiple D1xB2XH2 units will auto-synchronize when powered from the same power source; removing the need for any additional sync modules on the circuit.
- Four flash rates: 1Hz, 1.3Hz, 1.5Hz & double flash
- Automatic synchronisation on multi-beacon system
- User replaceable Xenon tube secured against shock & vibration
- Stainless Steel guard included as standard
- Field replaceable UV stable lens colour filter
- Stopping plugs included
- 4 x side cable entries, 1 x pendant conduit entry
- Duplicate cable terminations (in & out for daisy-chain installations)
- UL 1638 Visible signaling devices for Fire Alarm
- CAN/ULC S526 Visible signaling device for Fire Alarm
- Energy: 10 Joules
- Modes: 1Hz flash (60 fpm)
- 1.3Hz flash (80 fpm)
- 1.5Hz flash (90 fpm)
- Double flash (120 fpm)
- Eff. Intensity cd: 69.81cd UL1638 Private mode fire
- Eff. Intensity cd: 645.21cd measured ref to I.E.S
- Peak Intensity cd: 1,000,000 cd
- Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
- Voltage DC: 24V dc (20-28Vdc), 48Vdc (42-54Vdc)
- Voltage AC: 115Vac (110-120Vac), 230Vac (220-240Vac)
- In-rush: 813mA within 6ms @ 24Vdc
- Ingress protection: IP rating per EN60529:IP66
- Type rating per UL50E/NEMA250:4/4X/3R/13
- Enclosure matl: Marine grade LM6 aluminum alloy
- Enclosure finish: Chromate & powder coated finish – anti-corrosion
- Enclosure color: Red (RAL3000) or Grey (RAL7038)
- Lens material: High impact Borosilicate glass
- Cable entries: Side: 2 × 3/4"NPT & 2 x M20x1.5
- Pendant: 1 × 3/4"NPT
- Stopping plugs: Brass, Nickel Plated or Stainless Steel
- Terminals: 0.5 – 2.5mm² (20-14 AWG)
- Line monitoring: Blocking diode included
- EOL can be factory or user installed
- Installation temp: -55 to +80°C [-67° to +176°F]
- Storage temp: -55 to +80°C [-67° to +176°F]
- Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high
- relative humidity and high ambient temperatures exist
- Weight: 3.2kg/7.1Ibs
