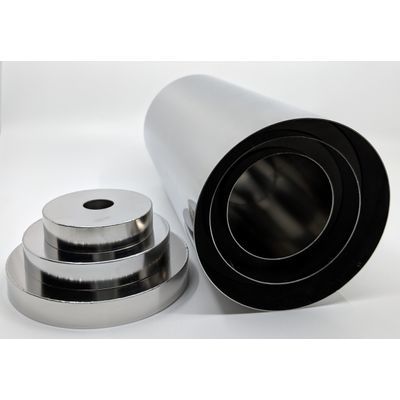

MuMETAL - Zero Gauss Chambers

Availability:
Usually Ships Within 2-3 days. Allow 1-2 weeks for Degauss Coil Installation

Custom Sizes Available:
If you need a custom diameter / length ratio, quantity of layers, or configuration, select CUSTOM Size option below. Please allow 6-8 weeks for Custom Zero Gauss Chambers

• Construction: Full heliarc butt seam welds. Covers slip-fit over cans
• Anneal: Perfection Annealed after fabrication to our specification
• Finish: None Required
• Assembly: non-magnetic layer spacers for isolation & alignment
• Degaussing Coil: Optional – used to reduce residual magnetism. Wrapped outside of inner layer
• Cradle: Included – a non-magnetic Cradle to hold the chamber in horizontal position and reduce vibrations.

To achieve the lowest magnetic levels within the chamber and for providing optimum long term stability and uniformity of the internal magnetic field levels, the periodic use of a Degaussing Coil is recommended. We offer both standard and optional high temperature insulated Degaussing Coils.

MuMETAL® Zero Gauss Chambers have been used worldwide by many universities, private research companies, national laboratories and OEM companies required to provide evidence of military or consumer regulatory compliance.

We have design and produced many custom configured chambers; up to 5-layers, with degaussing systems, up to 80 inch [2.0M] inner diameter and over 300 feet [90M] long.  If you require a custom chamber, our technical team can provide CAD design, testing, data collection and verification services to support your project.
