Ruhrpumpen GmbH
ZW - Single Stage Horizontal Split Case Pump
FromRuhrpumpen GmbH

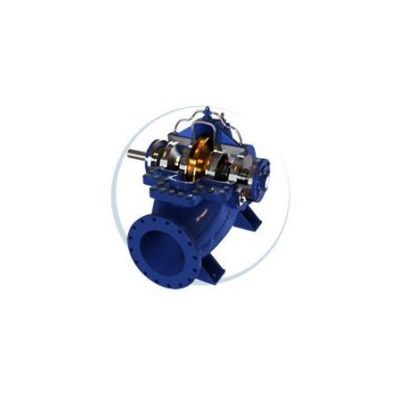

The ZW pump is a horizontal, single stage, double suction, double volute axially split case centrifugal pump. Its innovative design allows more compact installation and ensures perfect alignment.
Most popular related searches
horizontal split case
horizontal split case pump
split case pump
split case centrifugal pump
split case
horizontal split case centrifugal pump
axial split case
centrifugal pumping
centrifugal pump
axial split case pump
- Single stage horizontal split-case centrifugal pump.
- Horizontally split case, double volute (in high energy pumps) minimizes radial loads and allows operation over a wide range of capacities.
- Enclosed double suction impellers, hydraulically balance thrust loads.
- Flanged connections.
- Clockwise or counter-clockwise rotation.
- Grease or oil lubrication.
- Compact mechanical seal design.
- Horizontal or vertical mounted arrangements are available.
- Suction and discharge connections are concentric to make piping easier.
- All impellers are dynamically balanced for vibration-free-operation.
- Interchangeable radial and thrust bearings with oil or grease lubrication.
- Rigid shaft, combined with double volute casing.
- Stuffing box design for mechanical seal. Packing is optional.
- Capacity up to 9,000 m³/h, (34,400 U.S. gpm).
- Head up to 300 m (980 ft).
- Fire Service.
- Cooling Towers.
- Municipal.
- Oil Process.
- Petrochemical.
- Sugar Industry.
- Paper Industry.
- Pipeline.
- Power Generation.
- Dewatering.
- Mining.
- Water.
