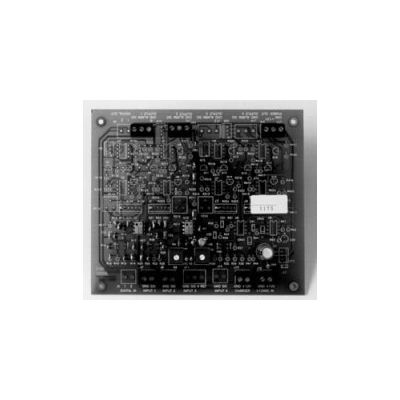

135-104 General Purpose Translator Board

The translator board can be configured to provide one of three difference types of output signals; 0-5 Vdc, 0-1 mA or 4-20 mA, 400 ohms maximum load. Sensors can be configured for any one of the three types of output signals or all three sensors can be set for the same type of output signal. All sensor input wiring and output signal wiring is accomplished using circuit board terminal blocks. The circuit board has been designed to eliminate customer calibration of the circuitry. On most of the printed circuit boards manufactured by NovaLynx, there are no potentiometers for adjusting input or output signal levels. All board calibration is accomplished by selecting precision resistors to set the output span and zero to match the characteristics of the sensor as well as to meet the requirements of the user.

The Models 135-114 and 135-115 have additional alarm circuitry for those applications requiring relay contact outputs to turn on or to turn off weather sensitive equipment or for storm warnings. External relays can be provided as well to drive alarm equipment.

• Power: 12 Vdc ± 20%
• Power consumption: 20 mA nominal
• Inputs: 1 each frequency (to 1 Khz), switch closure, ac voltage, 3 each voltage, resistance, current
• Outputs: 4 each, specify one: 0-5 Vdc, 0-1 mA, 4-20 mA (into 400 ohms max), 4 each alarm 12 Vdc @ 100 mA (current source, 135-114/115 only), 12 Vdc battery voltage
• Overall accuracy: 0.5%
• Controls: Alarm set points adjustable with on-board or off-board potentiometer (135-114/115 only)
• Operating temperature: -30° to +60°C
• Storage temperature: -40° to +80°C
• Relative humidity: 0-100% non-condensing
• Connectors: Screw terminals
• Size: 5.8" x 5.1"
• Weight/shipping: 8 oz/1 lb

135-104 General Purpose Translator PCB, 4 channels, 0-1 mA, 4-20 mA, 0-5 Vdc
135-114 General Purpose Translator PCB, 1 channel and 1 alarm output
135-115 General Purpose Translator PCB with Alarms, 4 channels with alarms on 4 channels
