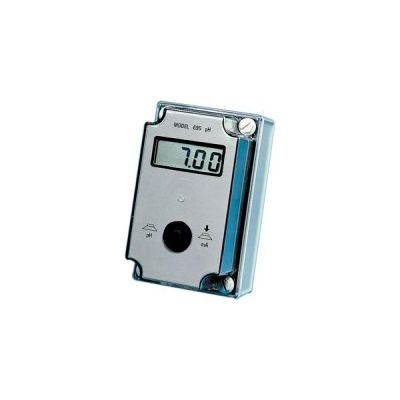

Model 695pH -Industrial pH Transmitter
The industrial pH transmitter is a 2-wire 4-20 mA pH transmitter enclosed in a sealed NEMA-4 enclosure. The industrial pH transmitter has an LCD screen powered by 11 to 80 VDC. The pH transmitter`s span has selectable pH values from 1 to 14 pH units via an internal dip switch. The industrial pH transmitter uses BNC connections for the pH transmitter`s pH probe and has tinned leads for a 3-K Balco ATC temperature probe or simulation resistor (3K resistor included). NOTE: If you will be using the industrial pH transmitter to monitor liquid with a pH close to 7pH or if your water temperature is close to 77°F the 3-K Balco ATC temperature probe will not be needed.
Recording
Global Water`s GL500 pH Recorder adds recording capabilities to the industrial pH transmitters. The GL500 pH Recorder connects to the pH transmitter`s 4-20mA output to record data. In addition, Global Water offers the PC320 pH Controller to use the industrial pH transmitter`s output to control pumps or alarms.
- Isolated 4-20 ma output scalable to any 1 pH unit span
- NEMA 4X Enclosure
- Large LCD Screen
- High Accuracy
- Manual/Auto Temp. Compensation
- Wide Power Supply Range
- High Input Impedance
- Industrial pH Transmitter:
- Range: 0 to 14.00 pH
- Resolution: 0.01 pH
- Accuracy: 0.02pH + 1 digit
- Span: Any 1 to 14 pH unit, selectable with internal DIP switch
- Temp compensation: Auto 32 to 212 °F (0 to 100.0 °C) or manual using fixed resistor
- Input impedance: >1012 ohms
- Output: 4 to 20 mA
- Operating temperature: -14 to 140 °F (-10 to 60 °C)
- Connector: BNC
- Power Source: 11 to 80 VDC
- Dimensions: 4.92x2.95x3.94 inch (37.9x7.5x10.0 cm) (NEMA 4X case)
