nvea - Version eSAM -Data Acquisition and Management Module
FromENVEA
Data acquisition and management module (logger & router) handling all parameters: gas analysers, dust monitors, meteorological and temperature sensors. The eSam DAHS ensures remote, bi-directional access and control of analyzers and the EMS via a WEB based interface. Furthermore, these data can be automatically and wireless transmitted to a central server, equipped with the XR® software suite, able to handle thousands of AQMS stations in a town, city or region.
Most popular related searches
ambient air quality monitoring data
air quality monitoring
air quality monitoring data
air quality monitoring system
ambient air quality monitoring
environmental monitoring system
ambient air quality
air quality data acquisition
AQMS station
gas analysis
- Data acquisition from any type of environmental monitoring systems: analysers, sensors, meteo, samplers
- Includes data retrieval, data storrage, visualisation, supervision
- Automatic prevalidation of the data
- Automatic calibration and instrument control
- Included Web based dashboard software
- Remote access to the DAS via internet and a WEB based interface
- Data storage in a local database
- MQTT service secured IoT communication protocol
- Windows or Linux
The eSAM data acquisition module is available on:
Rack 19”, 3U Frame
- WINDOWS or LINUX OS
- Standard configuration: 6 serials ports, 2 Ethernet ports, 6 USB ports
- Option: additionnal I/O, 6 or 8 analog input, 6 DI + 6 relay, 8 additional RS 232

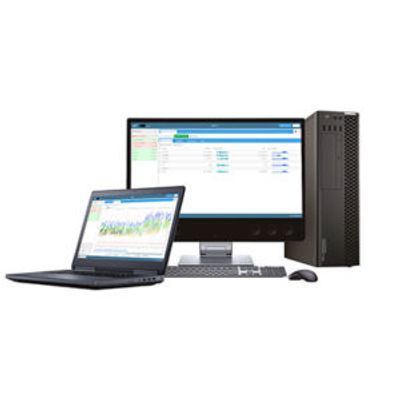

Desktop Computer
- WINDOWS OS
- Standard configuration: 8 RS 232, 1 Ethernet
- Option: additionnal I/O, 6 or 8 analog input, 6 DI + 6 relay, 8 additional RS 232
Fanless industrial chassis
- Linux OS
- Standard configuration: 4 Serial ports (3 RS232, 1 RS232/485), 2 Ethernet ports, 4 USB Ports
- Option: additionnal I/O, 6 or 8 analog input, 6 DI + 6 relay, 8 additional RS 232
- Air quality monitoring stations: fixed or mobile
Data Acquisition
- Acquisition of instantaneous measurements at a configurable frequency ranging from 5 seconds to 24 hours
- Management of the metrological context: analysers’ parameters and internal failures, technical measurements, external signals (door opened, flow, etc.)
- Controls of lower and higher validity limits, sensitivity threshold, immobility, slope and follow-up of peak episodes
Automatic Validation
- Automatic validation of the data with the XR software
- Association of a quality code with each value
- Evaluation of quality indicators for each data value: min, max, standard deviation, number
of over-thresholds, availability ratio - Prevalidation of the data according of the metrological context
Calibration
- Automatic management of calibration sessions: 5 span points
- Ability to adapt the linearization parameters according to calibration results
- Control of absolute, relative drifts, drifts between span points, standard deviation drifts
- Storage of all the information related to the calibration
