Santek
Pressure Vessels
FromSantek

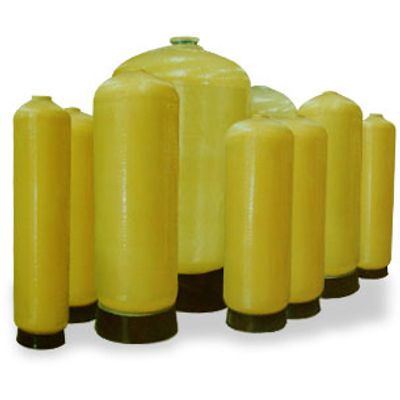

Santek pressure vessels are composed of a seamless, high density polyethylene liner and an outer winding of reinforced fiberglass and epoxy resin. Blow-molded, food grade inner liner assures leak-free operation, while high strength fiberglass winding provides pressure resistance.
Most popular related searches
Produced with computer aided processes, our tanks offer high performance and reliability.
- Composite material provides corrosion resistance;
- Wide range of sizes: from 7` to 63` diameter ( 22 l – 5230 l tank volume );
- Wide range of applications due to high chemical resistance, mechanical strength and food grade material;
- Easier handling and transportation due to lower weight compared to steel tanks;
- Options for in-out connections: 2½` and 4` threaded, 6` and 8` flanged openings;
- Operating pressure : 0 - 10 bars;
- Operating temperature : 1 - 65°C; Hot water versions available ( max. operating temperature 80 °C);
- Different color options available.
- Inside single piece, seamless and weldless polyethylene
- Outside fiberglass armour ensuring pressure resistance
- Inlet - Outlet connections are mounted with standart 2 1/2" and 4" threaded or with standard 6" and 8" flanged
- Resistant to 1-65°C and 10 bar pressure. (80°C resistance is optional.)
- Plastic material resistant to corrosion
- Ensuring advantage for transportation and space to be placed due to less weight in comparison to galvanized and steel tanks.
- Capacity choice is available between 11 l and 5230 l.
- Food-grade material.
- Please click buttons below to access the dimensional data for our pressure vessels.
- 2½" Threaded Top Opening Vessels
- 4" Threaded Top Opening Vessels
- 4" Threaded Top-Bottom Opening Vessels
- 6" and 8" Flanged Top-Bottom Opening Vessels
