Mütec - Version MF 3000 -Mass Flow Measurement for Bulk Materials
The MF 3000 is equipped with the newest microwave technology and is used to measure the flow of quantities of solids in metallic pipes. All powders, dust, pellets and granules can be measured reproducibly, from a few kg/h up to several t/h. The MF 3000 is suitable for inline measurements in pneumatic pipelines or in free-fall. The measurement process of the MF 3000 is based on the physical principle of the Doppler effect. The mass flow-rate is determined by evaluating the frequency and amplitude changes during the measurement process. Resting particles, such as deposits, do not influence the measurement.
- For all pneumatic conveying and free-fall processes
- For all bulk materials, from a few kg/h to several t/h
- IN-LINE measurement without weighing
- No fittings in the pipe; flush interior installation
- Simple, low-cost installation & start-up
- Adjustable sensitivity for very small and very large pipe diameters
- Galvanically separated RS485 interface for PLS connection
- Independent of static charging
- Limit-value monitoring with alarm output
- Sturdy, stainless-steel construction, abrasion- and maintenance free
- MF3000-D for high pressure
- MF3000-T for high temperatures
- ATEX version for zone 20 and zone 2
Our solid flow meter MF 3000 is designed for flow measurement in metallic pipes from a few kg/h to many t/h. The system is suitable for on-line measurements of powders, dusts, pellets, and granules from 1 nm up to 2 cm in pneumatic or free fall conditions.
The measurement principle of the MF 3000 is based on the physical Doppler-Effect, whereas the sensor generates a uniform field in the microwave frequency range inside the pipe. These microwaves are being reflected by particles passing through the pipe. Calculation of frequency and amplitude changes allows for accurate determination of solid flow. Non-moving particles like dust accumulation are excluded from the calculation.

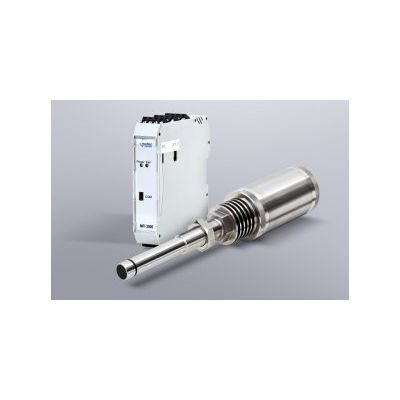

The installation is simple and cost effective via a welded branch, through which the sensor is screwed flush to the inside of the pipe. The sensor is connected to a DIN-rail mounted transmitter with 4...20 mA, RS232 and RS485 output. The calibration is easy by using our MF–SMART software and a reference flow value.
