Random Vibration Control Software
Random control is one of the two basic and most common excitation modes for Environmental Shaker testing. Random performs real-time closed-loop control of PSD profiles. The m+p VibControl vibration control system allows the user to designate all input channels as control, watchdog and/or measurement channels.
Most popular related searches
random vibration control
vibration control
vibration software
environmental testing
electrodynamic shaker
environmental performance
Random Vibration Control
- Fully compliant with DIN, MIL-STD 810 and many other standards
- Support on electrodynamic and hydraulic shakers
- Frequency range up to 12.8 kHz or 40 kHz, hardware dependent
- All input channels available as control, watchdog and/or measurement channels
- Control strategy: average, maximum, minimum
- Notching/force limiting
- True multi-tasking without loss of real-time control
- Resolution up to 25,600 lines, selectable in 8 steps

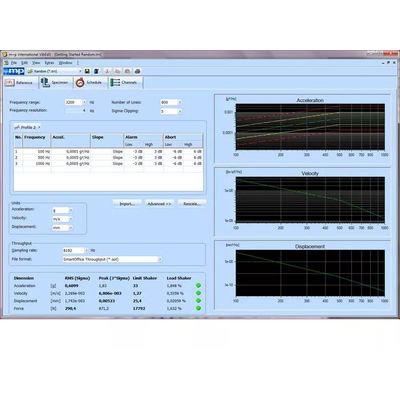

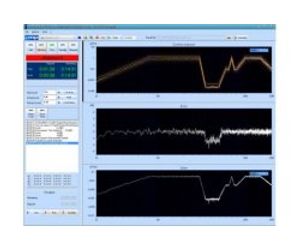

- Time data display and frequency display
- Seamless import/export of test results into applications such as MS Word, MS Excel,
and m+p SO Analyzer for dynamic signal analysis - Measuring and monitoring DC signals for functional testing
Random Data Reduction
- Online analysis of measured data or taped random data (PSD averaging)
- Measured data can be recorded on throughput disc
- Scalable hardware from 4 to 1,280 channels
- Fully replaces tape recorder
- Random testing is commonly used in aerospace and military applications for duplicating such events as aircraft take-off, rocket launch, or transportation over rough terrain
