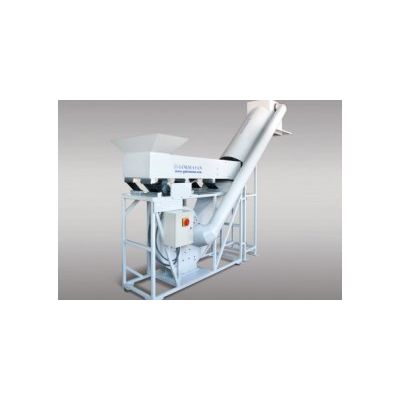

Gökmasan - Bar End Separator
FromGökmasan Ltd.
Bar ends, any kind of tramp materials, cutting tools in the swarf after metal removing processes are separated through bar end separator. Aim is to prevent the harm of the cutting tools in a crusher or unbalance of the centrifuge. Bar end separators can be manufactured in accordance with the process requirements in very different types.
Most popular related searches
metal swarf processing system
metal swarf processing
swarf processing
metal swarf
swarf
ore crusher
swarf removal
can separator
can compactor
centrifugal separator
- DIMENSIONS : depends in accordance with the capacity
- MOTOR POWER : 15 KW / 3000 cyc/min
- INPUT VOLTAGE : 380 AC
- WARRANTEE : 1 year from the invoice date
- Swarf is fed into the upper hopper of the bar end separator.
- Oscillating conveyor embeded on spring plates,working via eccentric movement that makes vibration. Swarf bundles moves forward with the vibration through the conveyor.
- Swarf goes through the other side of the osscillating conveyor with the aid of a blower, while the heavy parts goes down under the conveyor with gravity force. Thus, tramp parts are separated from the swarf
- Under the falling swarf, horizantal or vertical crushers can be placed.
