SingleTact - Calibrated 8mm Force Sensor with USB Interface
The Calibrated 8mm SingleTact Force Sensor paired with a USB electronics board offers precise force measurement capabilities. This product includes a matched sensor and electronics, a 50 cm USB cable, and a calibration sheet, with calibration data stored internally. It supports a force resolution less than 0.2% of full-scale and can handle maximum forces up to 300% of full-scale. The sensor boasts high repeatability, low linear error, and is suitable for use in temperatures ranging from -40°C to 85°C. Constructed with durable polyimide, it has a thickness of 0.30mm and baseline capacitance values of 8mm 75 pF and 15mm 230 pF at 100 kHz. The electronics offer a digital interface with sensor values at 10-bit precision, updating at ~100 Hz via a USB connection. This system is RoHS compliant, ensuring safe and efficient operation for sophisticated measurement applications.
Most popular related searches

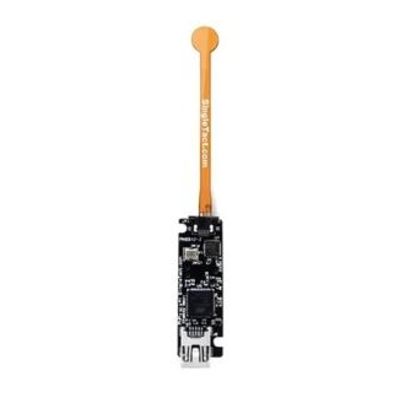

This is a calibrated pair of a 8mm SingleTact sensor and USB electronics board. It comes with 50 cm USB cable and Calibration sheet.
The sensor and electronics are a matched pair, the calibration is stored on the electronics. You can use a tail extender with calibrated systems, but not interchange with other sensors.
- Force Resolution : < 0.2% of Full Scale (FSR)
- Maximum Force : 300% of FSR
- Typical Repeatability Error : < 1.0% (1 sigma of FS)
- Operating Temperature : -40°C < T < 85°C
- Temperature Sensitivity : < 0.2%/° C
- Linear Error : < 2.0%
- Drift : 2% in 1 min, 4% in 10 min, at 50% FSR load
- Hysteresis : < 4.0%
- Response Time : < 1ms(Measured using Oscilloscope)
- Contract Surface Material : Polyimide
- Sensor Thickness : 0.30mm
- Typical Baseline Capacitance : 8mm 75 pF; 15mm: 230 pF @ 100 kHz
- ESD Sensitivity : Not sensitive to ESD
- Material Grade : UL grade 94 V-1 or better
- Maximum Bend Radius of Sensor Head : 300 mm
- Maximum Bend Radius of Sensor Tail : 3 mm
- Update Rate : ~100 Hz
- Digital Interface : Sensor values: 10-bit precision (115200 BAUD)
- IO Voltage : 5 V (No IO available)
- Supply Voltage : 5 V USB via USB Mini B
- Input Current : 5.1 mA
- Weight : Sensor 0.23g/ Electronics 0.34 g
- RoHS : Compliant
- Operating Temperature : -40°C < T < 85°C
