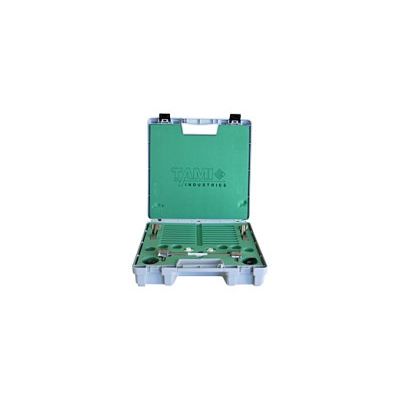

Valisette - Ceramic Test Cell

Each test kit includes:

• 1 Stainless Steel test cell holder, 250mm x 10mm ID
• 6 gaskets; 2 each of Viton, EPDM, & Silicone
• 2 clamp ends, DN 38 Specification
• Slots for storing up to 8 tubular ceramic membranes
• Choice of 4 ceramic membranes (Sold Separately. Inside Ceram or Filtanium, See "Technical Specifications" for Options)

The Valisette ceramic test cell unit is designed to work with tubular ceramic membranes at a recommended re-circulating flow rate between 200 and 600 liters/hour. Additional laboratory filtration equipment required includes a feed flow pump, tubing, and a storage tank.

The Valisette ceramic test cell kit can be used with the Inside Ceram (active layers vary by porosity) or Filtanium (titaniam oxide) ceramic membranes. Additional  membranes are also sold separately in customizable packs of 4. A combination of cutoffs is optimal. These ceramic membranes are available in Microfiltration, Ultrafiltration, and Nanofiltration varieties.

Cross/tangential flow test cells are typically used in membrane applications such as :

• Biological or biopharmaceutical processing
• Concentration of fruit juices and extracts
• Food and beverage processing
• Desalination of brackish water or seawater
• Purification of rinse water in electroplating tanks
• Municipal or industrial water and wastewater purification
