Neodym MiniKnowz - Combustible Gas Sensor Modules

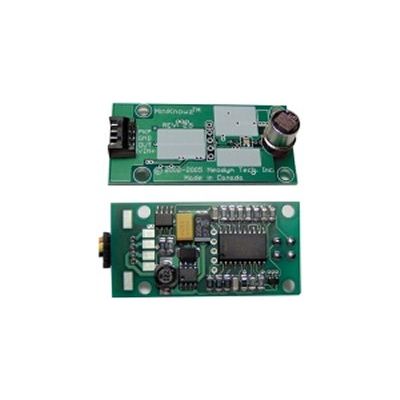

MiniKnowz™ is a series of compact, intelligent combustible gas sensing modules specifically designed for safety applications in fuel cells and gas-burning power generators. The devices are provided open-frame (circuit board only) for embedded applications in OEM equipment. Custom form factors can be developed for a nominal NRE and can be available within two to four weeks of approval of drawings.
Most popular related searches
- MOS (tin dioxide) sensor
- HCMOS microcontroller
- Hydrogen, methane, & propane versions
- 0-50% LEL measurement
- 200/400 ppm logical resolution (propane/methane & hydrogen)
- 30 seconds start-up time
- 4 secs. T90 response time
- 10 secs. T10 recovery time
- Normal, Warning, Alarm & Error states
- Table look-up (software) linearization
- Bi-color LED status indicator
- Optional 0-to-5V proportional output (6 bit)
- Optional 0-to-5V state step output (2 bit)
- Optional binary operation (TTL output)
- PK-Port™ compatible digital communications
- User-settable alarm/warning via PK-Port™
- Digital FLASH-based calibration
- Each device factory pre-calibrated
- Field re-programmable firmware
- -40 to +80 Celsius active compensation
- Sensor & temperature error detection
- 5VDC @ 80mA (400 mW) operation (Option "I1")
- Optional 7-40VDC input power version (Option "I2")
- Optional 7-60VDC input power version (Option "I3")
