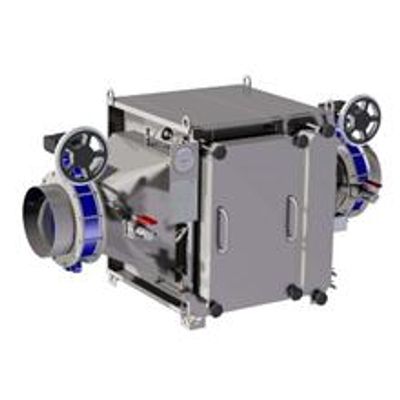

CamContain - Model CS -Containment System

• Double safety filter housing
• Validated filter housing
• Fully welded with integrated transitions
• Comes equipped with gas tight dampers with various drives
• Standard gas decontamination port
• Fully or semi-automatic scanner available for leak tests
• Contact-free filter change-out
• Easy and fast secure declamping with cylinder and automatic tension regulation
• Filter seating test according to DIN 1946, Part 4
• Tightness Class B according to EN 1866 at 5,000 Pa
• Connecting pieces can be supplied in various designs
• Available in various grades of stainless steel

Air flow volumes up to 3,500 m³/h can be achieved for a single housing.

Camfil Farr’s CamContain CS Housings offer the following advantages:

• Double safety filter housing
• Validated filter housing
• Fully welded with integrated transitions
• Comes equipped with gas tight dampers with various drives
• Standard gas decontamination port
• Fully or semi-automatic scanner available for leak tests
• Contact-free filter change-out
• Easy and fast secure declamping with cylinder and automatic tension regulation
• Filter seating test according to DIN 1946, Part 4
• Tightness Class B according to EN 1866 at 5,000 Pa
• Connecting pieces can be supplied in various designs
• Available in various grades of stainless steel

All main filters can be equipped with straps to facilitate handling and change-out. The filters can be supplied with a variety of gaskets to suit the specific application. The casing accommodates different classes of filters that are suitable for dealing with gas or particle contamination.

Areas of use include BSL 3 and BSL 4 laboratories, isolation wards, pharmaceutical and nuclear industry.
