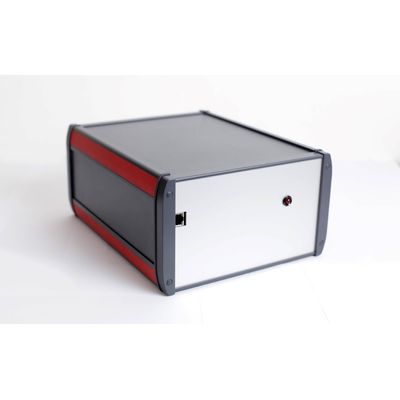

MaSaTECH - Model AIMS -Control Unit

The AIMS control unit allows easy management of all operation parameters of AIMS - Engine. Two integrated thermostats enable the control of the temperature of AIMS drift tube and sample inlet in range from 30 to 120 0C. The high voltage modules integrated in the control unit enable to pre-set AIMS drift field intensity in the range from 160 to 620 V/cm in both polarities. The floating HV switch enables the control of Bradbury-Nielsen type of shutter grid in range from 5μs to 500μs with duty cycle 10 - 500ms. The main advance of AIMS - Control unit is an integrated 16bit data acquisition card suitable for dense spectral data record. The dense data sampling in combination with fast preamplifier allows AIMS to reach the highest resolving and separation factor.
