- Automated and rapid structural pavement testing applicable to pavements all over the world
- Determines the layer of failure, rather than simply determining the bearing capacity
- QA/QC of newly built pavements
- Compares a range of rehabilitation options, including plane off and recycling rather than just applying overlays
- The use of the FWD provides accurate, reproducible, and repeatable structural data
- Automated and real-time monitoring of the load cell, geophones, and data variations ensures high quality of collected data
- Uses mechanistic-empirical analysis applicable to most of pavement structures
- The FWD is used worldwide from the hottest and driest deserts to the humid tropics and the cooler polar regions
- Compliance with ASTM D4694-09 and ASTM D4695-03 and equivalent standards. Passes TRL (UK) and CROW (Netherlands) correlation trials. AASHTO R32-11 calibration protocol compliant
Dynatest
Falling Weight Deflectometer
FromDynatest

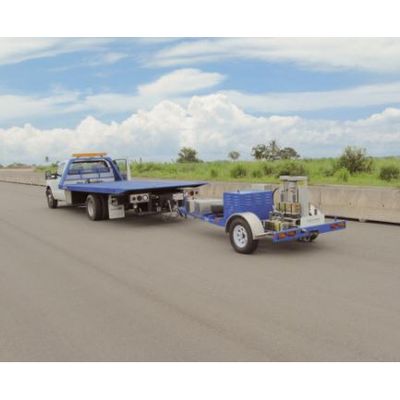

The Falling Weight Deflectometer (FWD) is used by pavement engineers to evaluate pavement conditions and performance, to determine the need for rehabilitation or reconstruction. The data from the FWD can also be used to optimize pavement design and maintenance strategies. The Falling Weight Deflectometer (FWD) is an integral part of the process for structural evaluation of pavements. The FWD is a non-destructive and fast method to evaluate the structural capacity of pavements for research, design, rehabilitation of the road and for pavement management purposes. The Dynatest Falling Weight Deflectometer (FWD) applies a dynamic load that simulates the loading of a moving wheel. The pavement response is analyzed with Dynatest’s ELMOD (Evaluation of Layer Moduli and Overlay Design) software to determine the elastic moduli, stresses, and strains of each modeled layer. ELMOD reports the weakest layer of failure, residual life and determines the optimum rehabilitation alternatives. The FWD is available as a trailer or a truck-mounted version (the USA only) meeting all FWD standards worldwide.
