Model FTS/KO-1 -Film Sensor For Cooling Ceiling Controller

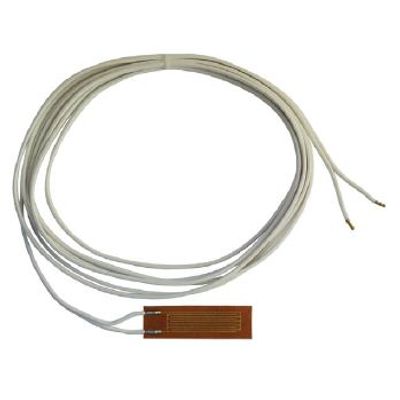

The FTS/KO-1 film sensor is a PCB film which can be stuck to a copper pipe or an even metal surface. The back of the film sensor is coated with an adhesive agent and a protective film. The film sensor is equipped with parallel-routed printed conductors  sensitive surface) which are gold-plated for improved surface protection. The sensor acts as a conductivity measuring cell. The conductivity is measured using alternating current in order to prevent corrosion and polarisation effects. The sensor is available with connected 3-metre long thin white wire. Other connecting line lengths are available on request. Care should always be taken to ensure that the sensitive surface of the sensor remains grease-free and is not treated with chemical substances, as these can  severely impair or even completely destroy the functionality of the sensor.
