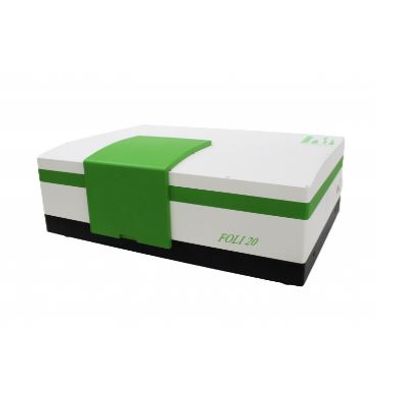

INSA Optics - Model FOLI20 -FT-IR Spectrometer
FOLI20 FT-IR spectrometer, capable of meeting the needs of different requirements of research and development users. FOLI20 can optional configure automatic switching of MIR/NIR sources and detectors, it has the standard spectral resolution of better than 0.3cm-1 and expandability of spectral range from MIR to NIR (12800-350cm-1). FOLI20 can accommodate different internal and external accessories. It provides researchers another FTIR spectrometer to reach a new stage.
Superior Spectral resolution:
FOLI20 has spectral resolution of better than 0.3cm-1 in whole range and it can upgrade to higher spectral resolution if required. The superior resolution is suitable for most of R&D projects.
Expandable Spectral Range:
FOLI20 FTIR spectrometer can achieve the analysis of both MIR and NIR spectral range in one device, through switching the optical element automatically. It can expand from the standard MIR spectral range (8000-350cm-1) to NIR range(12800-4000cm-1). FT-NIR owns special advantages: under general circumstances, samples can be analyzed in vials directly without diluting, due to the fact that quartz is transparent in NIR range.
High Performance Design:
FOLI20 FTIR spectrometer designs exclusively for R&D institutions. It combines easy operations, high-performance design and high-cost performance into one device. FOLI20 configures room temperature DLaTGS detector and users can choose other high sensitive detectors, such as liquid nitrogen cooled MCT, Thermo Electric Cooler MCT，LN InSb and TEC InGaAs detectors. Those detectors can provide higher sensitivity and higher energy throughput for the experiment. All detectors have dual-channel A/D and 32 bit dynamic range, and acquire the lowest electronic noise.
Pharm & Life Science
- Protein conformation and quantification
- Quantification for Active Pharmaceutical Ingredients and excipient in water solution
Microorganism Identification
- Characterization for the volatility and stability of medicine combined with TGA module
Polymer and Chemical Products
- Detection and Characterization for the volatility and decomposition combined with TGA module
- Monitoring reaction process in lab combined with MIR fiber probe module
Surface analysis
- Detection and Characterization for the Ultra-Thin film and mono-layer film
- Characterization for the erosion process
Material Science
- Detection of Emissivity of building materials
- Evaluation for Optical material such as Infrared windows and mirrors
- Study on black material with photoacoustic spectroscopy
Semiconductor Industry
- Measurement for thickness of various non-metal films
- Measurement for content of Carbon/Oxygen in silicon QC
Soil Analysis
- Evaluation for nutrition and organic matter in soil
- Study on the characteristic of different soil
Optional Accessories Internal and External:
- TGA-IR coupling Module
- GC-IR coupling Module
- External sample compartment, vacuum or purgeable
- External vacuum UHV Chamber
- 2cm to 20 meters length gas cells
- Integrating sphere accessory
- In-situ Transmission accessory
- In-situ Diffuse Reflection accessory
- ATR and specular accessory
