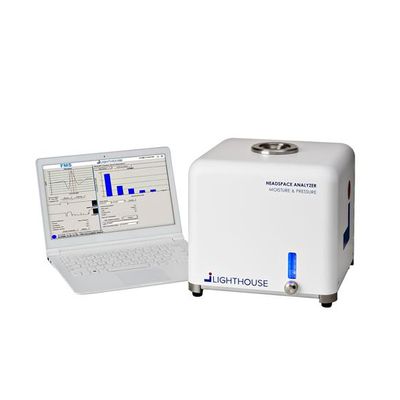

Model FMS-Pressure/Moisture -Headspace Analyzer
LIGHTHOUSE pioneered the creation of rapid, non-destructive headspace analysis. LIGHTHOUSE’s FMS-Pressure/Moisture Headspace Analyzer simultaneously monitors both moisture partial pressure and total headspace pressure. The benchtop FMS-Pressure/Moisture Headspace Analyzer can be utilized throughout the product lifecycle for development and QC laboratory applications, as well as final inspection of headspace moisture and pressure levels in production and packaging.
Most popular related searches
headspace analyzer
container closure integrity monitoring
vacuum leak detection
non-destructive measurement
non-destructive monitoring
headspace
benchtop device
non-destructive analysis
headspace analysis
moisture monitoring
- Vacuum leak detection
- Container closure integrity studies
- Moisture determination of lyo product
- Lyo chamber moisture mapping
- Lyo cycle optimization
- Water vapor permeation studies
- Moisture degradation studies
- Stability trends, end-of-shelf life studies
- Rapid non-destructive measurement allows for 100% inspection
- High-sensitivity signal analysis delivers an accurate measurement in seconds
- Custom change parts provide consistent positioning of sample for optimal measurement across a wide range of container types and sizes
- NIST-certified standards for calibration and verification ensure accurate results
Nominal Specifications
- Measurement Range: 0 to 1.0 atm (Total Pressure), 0 to 25 torr (Moisture Pressure)
- Measurement Time: 1 second
- Container Sizes: 1 to 2000 mL
- Container Capability: Tubing or molded; amber or clear
Physical and Electrical
- Dimensions (WxDxH): 30.5 x 30.5 x 29.2 cm (12” x 12” x 11.5”)
- Weight: 13.6 kg (30 lbs)
- Power Requirements: 110-240 VAC, 50/60 Hz, 60 W
- Controller: PC
