PAROC - Model AluCoat T -Hvac Bend

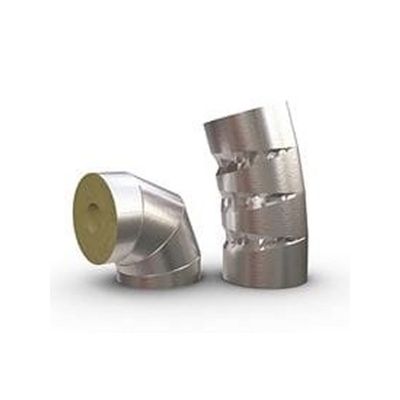

PAROC Hvac Bend AluCoat T is a non-combustible stone wool pipe section bend for thermal and condensation insulation of pipework in buildings and ships. It has a reinforced aluminium foil facing and tape in the longitudinal seam which prevents condensation. Factory produced bends are a very good and fast insulation solution for pipe elbows.
MED Type-Examination (Module B) certificates No. 74480/A0 and 74479/A0 and UK Type-Examination (Module B) certificates No. 74465/A0 and 74467/A0.
Surface temperature of the facing must not exceed +80°C (temperature restriction determined in accordance with heat resistance of adhesive).
PAROC stone wool products are capable of withstanding high temperatures. The binder starts to evaporate when its temperature exceeds approximately 200°C. The insulating properties remain unchanged, but the compressive stress weakens. The softening temperature of stone wool products is over 1000°C.
Dimensions
Dimensions
Thickness : Inner Diameter
20 - 100 mm : 15 - 168
In accordance with EN 13467 : In accordance with EN 13467
Dimensional Stability
Property : Value : According to
Maximum Service Temperature - Dimensional Stability : 250 °C : EN 14303:2009+A1:2013 (EN 14707)
