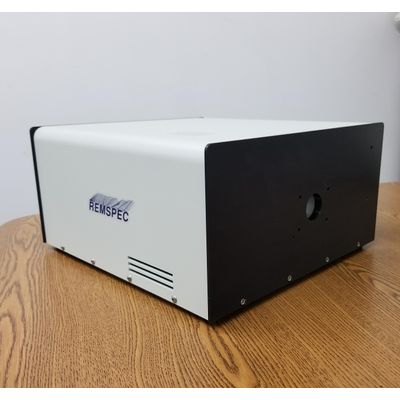

Model LS-2020 -Interferometer Light Source

Optical System:

• Spectral Range: 4500 to 600 cm-1
• Optical Resolution: 2 cm-1 - 16 cm-1
• Interferometer Proprietary Rocking rooftop interferometer with KBr beam splitter (ZnSe optional for humidity resistance).
• Source: Air cooled SiC in an integrating sphere.
• Beam size: 25 mm (1 inch) diameter.
• Laser: Long life solid-state laser.

Footprint

• 335 mm x 320 mm x 165 mm (w x d x h) 12.2 kg

Electronic System:

• Power Supply: 100 - 240 VAC in 5 A 24 VDC out
• Data System: PC with USB connection to system.
• Automation: Microprocessor controlled optical bench with digital speed and resolution control
• Operating Environments:
• Housing: The interferometer is in a sealed, and desiccated housing
• Operating Temperature: 5 to 30 C
• Software: VizIR™ or Peak Spectroscopy®
