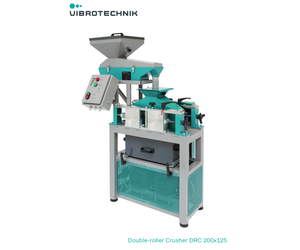

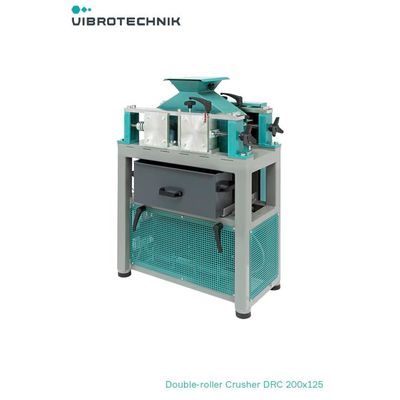

Vibrotechnik - Model DRC 200x125 -Laboratory Double-roller Crusher

The Roller crusher with smooth rollers DRC 200х125 is designed to crush brittle materials of various strengths. The operational principle of the roller crusher is based on simultaneous compressive and shear strains between rollers rotating in opposite directions. See more: http://vibrotechnik.com/

Most popular related searches

roller crusher

material crushing

particle sizing

laboratory milling system

Characteristics DRC 200х125

Charging door dimensions 100х25 (mm)
Roller diameter 200 (mm)
Roller length 125 (mm)
Maximum material feed size 16 (mm)
Distance between rollers 0–12 (mm)
Average crushed product particle size at minimum aperture 90%<0,25 (mm)
Maximum output 700 (kg/hour)
Hardness of material crushed Up to 7 Mohs units
Electric motor power 2 х 1,1 (kW)
Roller rpm 650 and 670
50 Hz supply voltage 380 (V)
Overall dimensions (Length х Width х Height) - 680 х 400 х 950 (mm)
Weight 245 (kg)
Roller material: tool steel - AISI 1066, AISI 01, DIN 150Cr14
