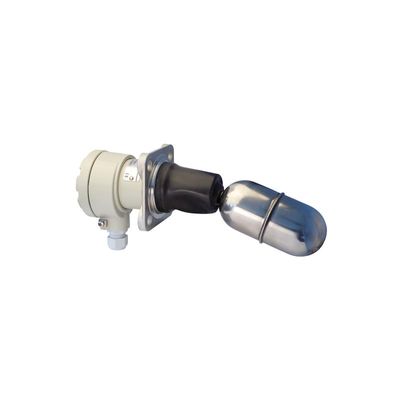

Nivomag - Magnetic Coupling Level Switches
The NIVOMAG magnetic float level switches are used for point-level detection and level control of liquids in all types of containers.
Most popular related searches
level switch
magnetic level switch
industrial water industry
float level switch
level controller
industrial water
magnetic float switch
water industry
power plant water
float switch
- Operation without power supply
- Micro-switch separated from the process
- All wetted parts are stainless steel
- Side or top mounting
- Fixed or adjustable switch differential
- Submersible versions
- Various process connections
- Operational check via an optional tester
- Flame-proof variants
- SIL 1 approval
- 5 years warranty
- Liquids with minimum 0.7 kg/dm3 density
- Fail-safe and control level switches in closed tanks
- Ballast tanks of ships
- Chemical industry
- Food and beverage
- Power plants
- Oil industry
- Water industry
- Ambient temperature: −20…+80 °C
- Process temperature: −50…+250 °C
- Process pressure: up to 25 bar
- Output: 250 V AC, 10 A NO/NC
- Process connection: flanges or 2" thread
- Ingress protection: IP65, IP68
- Approvals: ATEX, IEC Ex, INMETRO, DNV (Marine), BV (Marine), SIL 1
