Micromanipulator for Electron Microscopy

SHARE

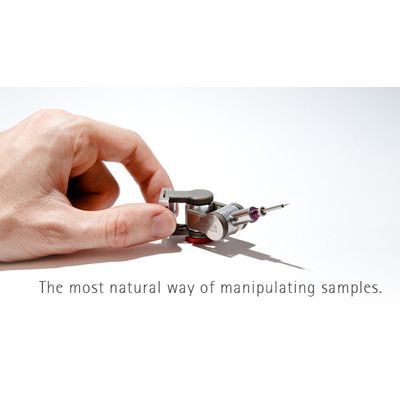

Over the last few years, the MM3A-EM micromanipulator has created an unparalleled new dimension of quality in the field of Electron Microscopy. It is employed in a wide spectrum of SEM, FIB and other microscopes for an even wider range of applications and it has become the industry standard for OEM and retrofit solutions with well over 2000 units in the field. Give your microscope a hand: use the MM3A-EM to add new capabilities and functionality to your instrument.
