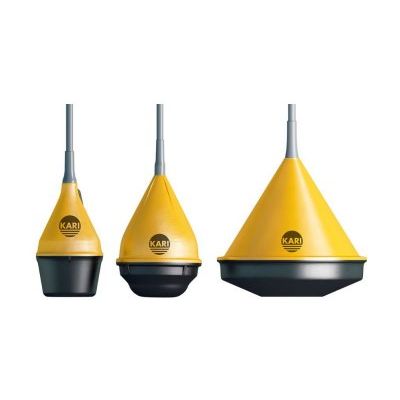

APG - Model Series KA -Multi-Level Cable Float Switch
Kari cable suspended float switches are capable of up to four switching levels in a single float, and offer 25 different configurations - including some with built in hysteresis. That means you can replace up to four single level float switches with one 4-point level switch. Kari offers high chemical compatibility and durable components built to outlast any other.
Award Winning Design, Legendary Endurance
The award winning, patented design of the Kari float switches allows up to 4 switch points in a single float.
- Certification: IS Capable,CSA,CE
- Switch Points: Up to 4 NO/NC
- Switch Type: Cable Suspended/Tilt
- Up to 4 switching levels
- Optional built-in hysteresis
- 25 configurations
- Mercury and Lead free
- High chemical compatibility
- Proven reliability in operation
- Cost effective
- Max Voltage: 250 VAC or DC
- Temperature: Up to 175°F
- Float Material: Polypropylene
- Cable Material: PVC (standard), Polypropylene, Rubber, Teflon
- IP67, NEMA 6
- CE, CSA General Purpose
Built Better
Kari Series float switches feature a high chemical compatibility, a stronger cable, and durable components that simply last longer than the competition.
Level Control
One Kari Series float switch can replace four single-level float switches. It can accomplish the same functionality with only one float, saving you money, avoiding tangles, and getting the job done.
Non-Toxic
Rest assured, these float switches use no lead and no mercury.
Performance
- Switching Differential
- Minimum 10 in.
- Maximum 50 in.
Programming
- N/A 19 control configurations available
Electrical
- Maximum Voltage
- 250 VAC or DC
Physical
- Minimum Fluid Specific Gravity
- 0.7 for Standard Float
- Standard Cable Lengths
- 5m (16 ft.)
- 15m (49 ft.)
- Weight
- 0.75 lbs
Approvals
- Certifications
- CSA General Purpose
- CE
Connectivity
- Cable
- Up to 5 wires
Environmental
- Max. Liquid Temperature
- 140° F
- Protection Rating
- IP67
- NEMA 6
