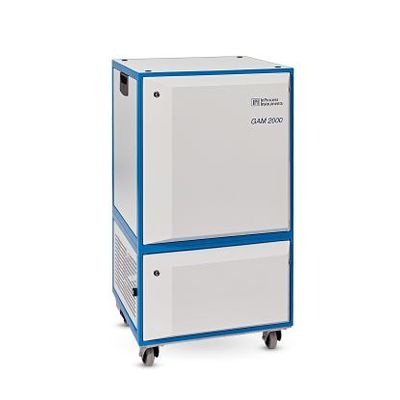

Model GAM 2000 -Multicomponent Online Gas Analyzer
Quadrupole Mass Spectrometer for fast and precise multicomponent online gas analysis. Designed for use in industrial processes in chemistry and pharmacy, laboratory and engineering. Customizable configuration to the specific analytical needs of the application, Smooth integration of our system into our customers` hardware and software, Robust and air-cooled housing for industry and research, High reliability and availability under demanding conditions, Many interfacing options for various separation and analytical techniques (e.g. TGA, GC, EA), Low cost of ownership (e.g. low consumption of calibration gases)
Scanning speed: 4 ms / amu
Dynamic range of measurement: 100 ppb – 100 %
Gas inlet for atmospheric and other pressure ranges
Interfaces:
Capillary gas inlet, optional with operating temperature up to 200°C
Optional multiport gas inlet for 4 or 6 gas lines (process or calibration gases)
Standard IO:
8 DO, 8 DI, 4 AI (temperature, pressure), expandable up to 64 DO, 64 DI, 32 AI plus optional 32 AO
Mass range
1 - 200 amu
PC
Windows® based
Software
IPI-QMS System and Application Software
Data communication
Ethernet, PLC: PROFIBUS, PROFINET, OPC, MQTT others on request
Electrical connection
Main voltage 230 VAC, 50 Hz, 1.2 kVA; 115 VAC, 50/60 Hz on request
Protection class
IP 20
Ambient conditions
Temperature < 35 °C; rel. humidity < 75%
Dimensions
approx. 500 x 550 x 1025 mm (w x d x h)
Weight
approx. 110 kg
