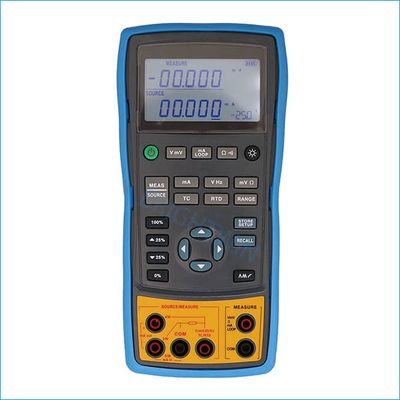

Model ETX-1825 -Multifunction Process Calibrator Multimeter Two in One
ETX-1825 Multifunction Process Calibrator has process calibrator functions and multimeter functions and combined two meters all in one. This multifunction process calibrator covers all the functions required in signal calibration and measurement in industrial site. Its source simulation output and measurement functions are designed independently and can work at the same time. It has automatic cold junction compensation and 3-wire/4-wire auto recognition function. Its power supply support 6 units AAA dry battery, external shell is in IP67 water-proof level. It is an ideal portable process calibrator and multimeter for user to do calibration in the lab or in outdoor industrial sites, and a low-cost solution of the replacement of other brands precision multifunction process calibrator.
ETX-1825 Multifunction process calibrator multimeter is a multifunctional precision reliable handheld calibration instrument with 0.05% basic accuracy. It is specially designed for process controlling system, and suitable for the industrial field signal debugging, meet the requirements of a wide range of tasks, supports source volts, current, resistance temperature detectors (RTD), thermocouples (TC), frequency, and ohms all process controlling signal parameters measurement and signal simulation output. And it can also be used to calibrate the secondary instruments that can measure these parameters mentioned. It is an ideal low-cost replacement of other brand multifunction process calibrator.
- Super-strong protection: the waterproof grade is IP67.
- Automatic protection against the signal terminals connect to the 220V.
- A split-screen display. The upper display allows you to measure volts, current (with loop power), resistance and continuity test. The lower display allows you to measure and source volts, current, resistance temperature detectors (RTD), thermocouples (TC), frequency, and ohms.
- Basic accuracy 0.02% or 0.05%. Have precision reset and calibration button.
- Calibrates a transmitter by using the split-screen.
- Thermocouple measurement has automatic reference junction.
- Automatic and manual cold end temperature compensation for TC.
- Support source simulation output and measurement synchronously.
- Manual stepping and automatic stepping and ramping.
- Have LCD back light, manual back light adjustment and auto power-off function.
- 24V loop power for calibration, 3-wire 4-wire automatic checking.
- Support AAA dry battery power supply and external 12V 1A AC to DC power adapter.
- APSL intelligent pressure module with high precision can be selected according to customer needs to realize pressure measurement function.
- Operating Temperature: – 10 ℃ ~ 55 ℃
- Storage temperature: – 20 ℃ ~ 60 ℃
- Weight: 650 grams
- Dimensions: 200mm*96mm*47mm
- Power supply: 6Pcs AAA battery or AC/DC power Adapter.
