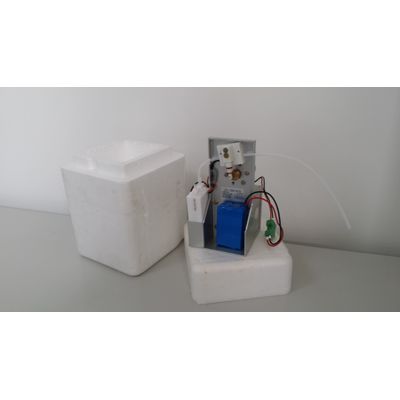

Newsky - Model CYT-1 -ozone sensor

•Developed based on the electrochemical principle, offering high detection accuracy and resolution.
•Utilizes a specially designed ionic bridge made of advanced fiber material as the core component of the sensor.
•Incorporates a unique micro-pump constructed from special self-lubricating materials, eliminating the need for lubricating oil during operation and thereby avoiding any impact on measurement results.

Measurement range:  0~30mPa
Allowable error for static testing:  ±4% or ±0.3mPa, whichever is greater.
Background current of an electrochemical cell:  ≤0.1μA(The instantaneous value of the cell current measured when zero air is introduced into the electrochemical reaction cell for 10 minutes.)
Static test response time:   ≤40s (The time required for the electrochemical reaction cell current to decrease from 4 μA to 1.5μA)
Dimensions:   185 * 185 * 235 (mm * mm * mm), including foam box
Weight:  600±50g

Can be equipped with CF-06-AH radiosonde.
