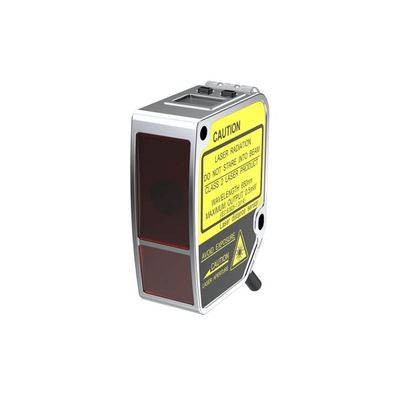

Lanbao - Model PDA-CC50TGI -Precision Laser Ranging Sensor
Lanbao high-precision laser ranging sensor is intelligent, sturdy and convenient. Intelligent: The sensor can perform gain-control by itself, that is, self adaptive control and optimization according to the reflectivity of the target, which can realize stable measurement from black rubber to smooth metal surface; Sturdy: Improve the sensor structure, pure machining process is stronger and more durable than the ordinary plastic case, with better electromagnetic protection and due to integrated design of optical basis, the sensor can avoid the risk of measurement error caused by base deflection; Convenient: The sensor is small in size, requires small installation controls, light weight, easy to install, so it`s ideal for installation on moving objects, reducing space requirements and reducing failures relative to split architecture.
- Output: Push-pull+RS485（support ModBus）/Push-pull+4...20mA
- Detection range: 2mm~200mm
- Repeated accuracy:: ±0.2μm~±40μm
- Linearity: ±0.3%F.S.~±0.4%F.S.
- Sampling frequency: 500Hz
- Supply voltage: 10...30VDC/12...24VDC
- Repeated accuracy: Min.±25μm
- Detection Range : 80...500mm
- Light source : Red Laser (650nm)
- Dimension : 65*51*23mm
- Linearity : ±0.4%F.S.@white card with 90% reflectivity
- Resolution : 15μm@80mm; 500μm@500mm
- Repeated accuracy : 30um@80mm; 250um@250mm; 1000um@500mm
- Temperature drift : ±0.02%F.S./?
- Output : Push-pull+4...20mA analog output
- Supply voltage : 12...24 VDC
- Load current : <200mA
- Ambient temperature : -10?...50?
- Voltage withstand : 1000V/AC 50/60Hz 60s
- Housing material : Aluminum 6061
- Connection : 2m cable (5 wires)
- Anti-ambient light : <3,000lux
- Enclosure rating : IP67
- Voltage drop : <2.5V
- Indicator : Power: Green LED; Action: Yellow LED
- Display : 14*10.7mm OLED Display
- Operating Control : Button control
- Ambient humidity : 35...85% (without condensation)
- Impulse withstand voltage : 1000V/AC 50/60Hz 60s
- Circuit protection : Short ciruit ,reverse polarity, surge protection
- Integrated function : Status inquiry/Self-diagnostic function/tech-in /output setting/Mean-value setting/ Single point & Window mode switching/Reset
- Frequency : 500Hz
- Vibration resistance : 10Hz...55Hz (amplitude 1.5mm, 2 hours each for x,y,z axis)
- Power consumption : ≤700mW
- Laser class : Class ?
