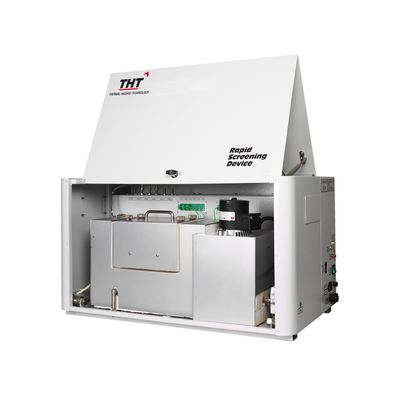

Rapid Screening Device
A cost-effective calorimeter for screening samples for exothermic reaction hazards. THT RSD™ (Rapid Screening Device) low cost, versatile, and flexible, safety calorimeter for thermal and pressure hazard determination over a wide temperature range. Using temperature ramp methods with isothermal soak options this new system utilises unique technologies to quickly obtain temperature, pressure and heat of reaction data.
- Multiple samples (up to 6 simultaneously)
- Pressure & temperature differential measurement (simultaneously)
- 10mg to 100g sample
- 30 minute test time
- High sensitivity (detects 1% DTBP in toluene)
- Thermo-kinetic quantitative data analysis
- Glass, metal, reusable sample chambers
Temperature Range:
-100 to 400°C
Number of Samples
1 to 6
Pressure Range:
0 to 160 bar
Modes of Operation:
Isothermal or scanning
Scan Rate:
0 - 10°C / min
Software:
Dedicated Windows based control and data analysis software through USB link to PC
PC Requirements:
Microsoft Windows
USB Port
Footprint:
70cm x 43cm x 40cm
(width x height x depth)
THT provide a range of inexpensive options to enhance performance
