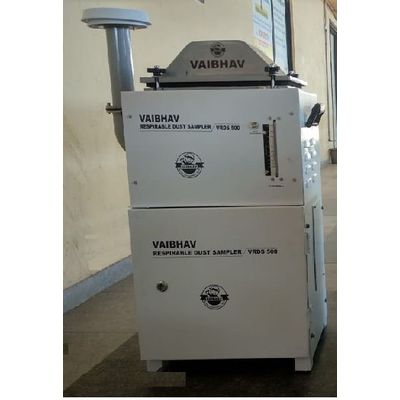

Model VRDS 500 -Respirable Dust Sampler
Special features: modular design for easy operation, drain plug for manometer fluid leveling, sturdy aluminum construction with ss hardware, low noise during operations, less variation in flow even chocking of filter, maintenance free suction assembly, totally eliminated of emi, compact, portable, easy to operate-transport & handle, arrangement for parallel gaseous sampling, light provision for working in night & dark area, design to runs continuously 24 hours or more, common body (housing) structure for all the model which will easy converted to any of the below model, suitable for outdoor use, corrosion free lockable housing
Condition: New
Features: Durable, Eco Friwndly, Fine Finished, Precise Design
Warranty: ALL VAIBHAV PRODUCTS CARRY 14 MONTH WARRANTY
Display: Ananlog
Flow Rate: Free flow 0.9 – 1.4 m3/min free flow with filter and more than 2.0 m3/min without filter
Automation Grade: Manual
Brand Name: VAIBHAV
Power: AC
Basic features: Heavy duty brushless belt driven almost maintenance free & zero consumable blower
Particulate Sampling: D50 cutoff cyclonic separator separate 10micron down to 0.1micron(depending upon filter). A cyclone is used for fractionating dust into two fractions. RSPM(<10μm ) are accumulate on filter paper
Filter Holder: Fine finished power coated fabricated from aluminum casting having zero leakage / leak proof through rubber gasket at all joints to accommodate any standard filter paper of 20.3cm x 25.4cm
Filter Media: 8” X 10” (203mm X 254mm / 20.3cm X 25.4 cm) Glass microfiber filter for common use and EPM2000 or equivalent for special monitoring / research work
IS Reference: Match the requirement prescribed in BIS 5182(Part-23) 2006 for particulate matter collection
Timer Recorder: 0.00 to 99999.99 hrs. time totalizer records the running time in hours
Clock / Timer: Programmable Real Time control system with control of automatic start & stop, number of required intervals can be programmed, Timer is used to start and shut off the sampler at preset time
Sampling Time: As per user choice and upto 30 hours maximum for single operation
Power Requirement: Single phase AC 220 volts, 50 Hz, sampler unaffected by +/- 10 % fluctuation in supply voltage. For proper operation and safety a good earth connection is mandatory
Dimension: Approximately 410mm X 300mm X 700mm
Particle Size: Separate provision for collection of Respirable and non Respirable (less than and greater than 10 micron) size particles
Construction: The body of RDS is robust enough to withstand impacts and vibration in transportation, it is made of heavy aluminum sheet.
Night View: Provision has been made for light in the sampler for taking reading during dark area and in night hours
Hardware: Only SS 304 corrosion free hardware are used in sampler for assembling
Make: VAIBHAV EQUIPMENT SERVICE – AHMEDABAD
Product Code: VRDS 500
Port: EX WORK AHMEDABAD
Payment Terms: L/C, D/P, T/T
Delivery Time: READY STOCK
