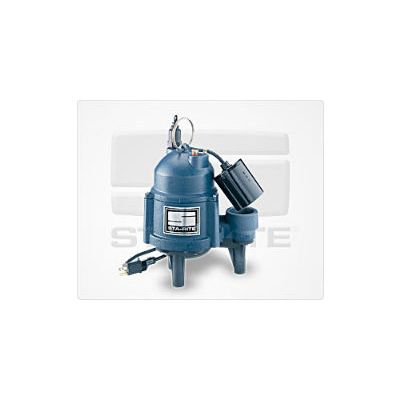

Model SC4 Series -Sewage Pumps
The SC4 Series Pumps are rugged, cast iron, submersible pumps with a non-clog vortex impeller and solids handling capability to 2`.
Most popular related searches
cast iron submersible pump
cast iron submersible pumps
float switch
sewage pump
submersible pump
submersible pump with vortex impeller
floating oil
level switch
float level switch
sewage
- 4/10 HP
- Class 30 cast iron construction
- 2” (50.8mm) NPT discharge
- Carbon/Ceramic mechanical seal
- Available without float, or with piggyback-connected tethered float switch
- Oil-filled motor with automatic reset overload provides safe operation
- Ball bearing construction for long life
- Easily replaceable power cord with optional lengths available
BODY CONSTRUCTION: Cast Iron with Fiberglass Reinforced Polypropylene Volute
HORSEPOWER: 4/10 HP
MAXIMUM HEAD: To 18 FT (5.5 M)
MAXIMUM CAPACITY: To 110 GPM (416 LPM)
FLOW AT 10` LIFT: 66 GPM
SWITCH TYPE: Tethered Float
SWITCH `ON` LEVEL: 13.5" to 18" (model dependent)
SWITCH `OFF` LEVEL: 4.5" to 8.5" (model dependent)
MAXIMUM SOLIDS SIZE: 2" spherical
AMP DRAW: 12.5 Amps
CORD LENGTH: Available with 10` or 20`
VOLTAGE: 115 Volt, 60Hz
MAX CONTINUOUS LIQUID TEMP: 130°F (55°C)
MOTOR: 4/10 HP (1550 RPM); Shaded pole with thermal overload
