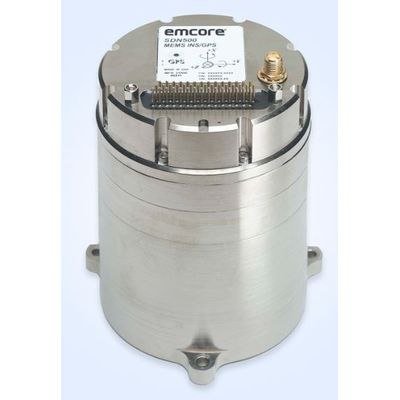

Model SDN500 GPS/INS -Tactical Grade Navigation System (Non-ITAR)

The versatile tactical grade system delivers a reliable 3.9 meter Spherical Error Probable (SEP) GPS-aided accuracy. Our proprietary Quartz MEMS Inertial Sensors maintain position and attitude accuracy in the event of loss of GPS tracking. The low power SDN500 is designed for integrator and OEM use in the latest demanding smaller, more scalable system applications. The SDN500 is an ideal solution for critical applications in such areas as geo-surveying, unmanned air and ground vehicles, precision targeting and positioning, and enables excellent system solutions in demanding commercial applications.

• Adaptable Modular 25 in.3 Compact Size for Packaging Flexibility, Weighs < 1.6 lbs.
• 48-Channel GPS Tracking for Improved Coverage
• Less than 35 Second TTFF from Cold
• Enhanced 100Hz Position Data
• Customer Programmable Output Data Rates

Tactical Grade Inertial Navigation Systems For:

• Unmanned Aerial Vehicles
• Defense Helicopter
• Defense Fixed Wing
• Missile Targeting
• Missile Guidance & Control
• Precision Guided Munitions
• Platform Stabilization

PARAMETERS: SPECIFICATIONS

• Position (SEP): 3.9 m
• Pitch/Roll (1 sigma): 1.0 mrad (0.057°)
• Heading (1 sigma, in motion): 1.5 mrad + d (1) (0.086°)
• Velocity (1 sigma, horiz/vert): 0.1/0.1 m/s
• Timemark Output 1pps: ±1 µs

SDN500 Hardware Developer’s Kit

• AC/DC Power Supply w/Coaxial Power Plug
• AC Power Cable
• DC/AC Automotive Power Inverter
• Main Interface Cable (Power & Communications)
• USB-Serial Adapter
• USB Cable
• Active Antenna / Compass
• USB Serial Adapter Software CD
• SDN500 CD
• Carrying Case
• SDLC/USB Interfact
