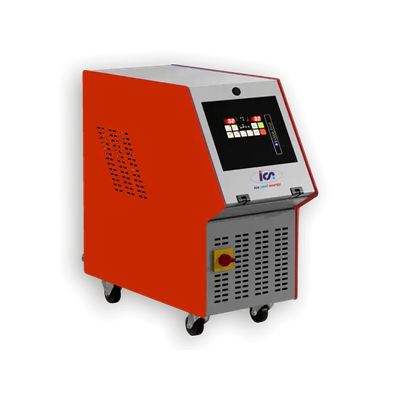

ICSModel i-Temp Compact base.line -Temperature Control Unit

SHARE

In terms of its efficiency and user-friendliness, the base.line series is in line with the current “simpler” market standard which is based on peripheral pumps. Designed and manufactured specifically for ICS Cool Energy in the UK, i-Temp Compact base.line offers extremely reliable, high quality German engineering. The temperature control units of the base.line are our investment-cost-optimsed standard units for an economical temperature control with water at temperatures up to 180 °C and flow rates up to 200 l/min. They offer a heating capacity of between 6 and 36kW. The base.line unit with its simple operation keyboard display is the preferred solution for many applications with an excellent price/performance ratio.

Most popular related searches

High levels of reliability

Utilise the latest in TCU technology

All-in-one solution

Perfect for local or global deployment

Keyboard operation

basicControl with display of set and actual temperatures

  • Simple operation via membrane keyboard with 7-segment display
  • 3 bar pump as standard
  • BasicControl micro controller
  • Stainless steel "longlife“ heating cartridge
  • Long-life peripheral impeller pump without mechanical seal
  • Stainless steel tank
  • Splash-proof control cabinet acc. to IP 54
  • Ready for connection with supply cable and CEE socket
  • Interface port integrated in the front of the unit (e.g. for optional interface analog, serial, Profibus, Profinet or OPC UA)
  • Optional external sensor connection
  • Housing and hood: RAL 7012 basalt gray
  • Side panels:red

  • Individual colouring
  • Interface options
  • Rails instead of rollers
  • Mounting on rubber buffers
