Model MIRA-35 -Vertical Doppler Cloud Radar

FromMetek Meteorologische Messtechnik GmbH

SHARE

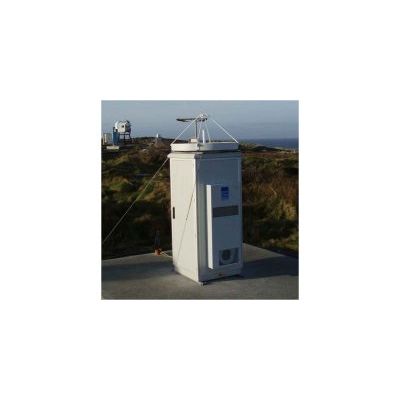

The pulsed Ka-band cloud radar MIRA-35 (formely named MIRA-36) is unique in performance and durability and delivers a calibrated Doppler spectrum of cloud droplets in up to 1024 height steps for a vertical range between 0.2 km … 15 km at a time resolution of 10 s. The wide dynamic range and the very high system sensitivity allow a tomography of cloud structures even in thin ice layer. Several antenna sizes can be installed stationary or in a trailer as mobile platforms.

Most popular related searches

air conditioning

vertical profiling

automatic monitoring system

automatic monitoring

remote monitoring

cloud profiling

Vertical profiling of cloud targets
Pulsed Doppler Ka-band Radar (λ=9 mm) with high sensitivity
1 m or 1.2 m or 2 m Cassegrain antenna with optional heating
30 kW Magnetron transmitter, duty cycle up to 1/500
Transmitter with linear polarized signal
Receiver for co- and cross- polarized signals
Multi peak evaluation of Doppler spectra
Efficient ground clutter suppression
Determination of calibrated reflectivity factor (dBZ), radial component, peak width, and LDR
Target classification of cloud droplets, rain drops, ice particles, snowflakes, and atmospheric plankton
Up to 2 x 1024 measuring heights (real + imag)
Height range 150 … 15000 m
Pulse width 100 … 400 ns (range resolution 15 … 60 m)
Temporal resolution up to 10 s
Unmatched sensitivity (at 5 km, 10 s averaging: -53 dBZ)
Pressurized wave guide system
Automated system monitoring, remote access
Delivery includes air conditioning and air dryer
