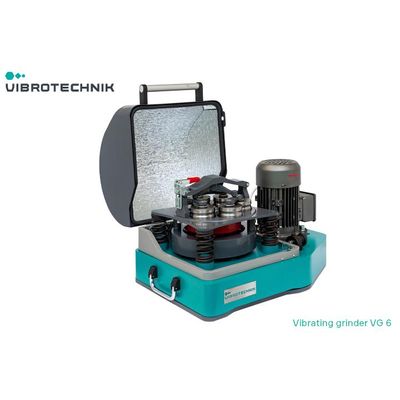

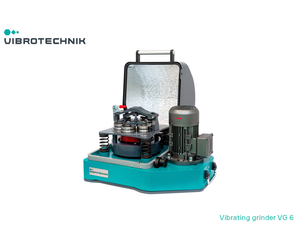

Vibrotechnik - Model VG 6 -Vibrating Laboratory Grinder

FromVibrotechnik LLC

Vibrating grinders are designed to comminute samples to a finely dispersed state in intermittent operation. The VG 6 vibrating grinder is designed for simultaneous comminution of six small (up to 5 cm3) samples. See more: http://vibrotechnik.com/

Most popular related searches

laboratory grinding equipment

vibrating laboratory grinder

laboratory vibrating grinder

Characteristics VG 6

Cup charging volume - 2-5 (cm3)
Number of cups - 6
Maximum material feed size - 2 (mm)
Vibration frequency – 1,500 (vibrations / minute)
Vibration amplitude - 3,5 (mm)
Comminution time - 1–30 (minutes)
Maximum material hardness -8 Mohs units
Electric motor power - 0,37 (kW)
50 Hz supply voltage - 380 (V)
Overall dimensions (Length х Width х Height) - 509х395х310 (mm)
Weight - 54 (kg)
Grinding element material – tool steel / zirconium dioxide / wolfram carbide - AISI 01, DIN 150Cr14 / ZrO2 / WC
