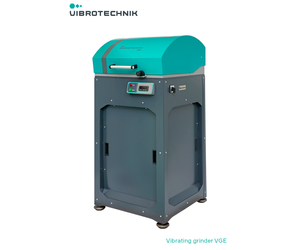

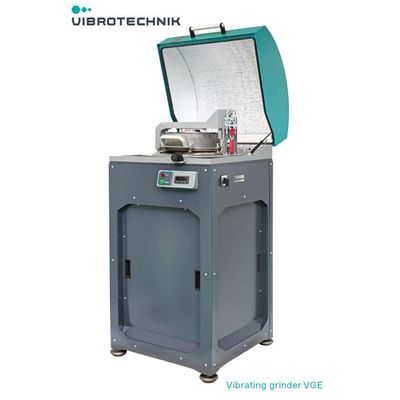

Vibrotechnik - Model VGE -Vibrating Laboratory Grinder

FromVibrotechnik LLC

Vibrating grinders are designed to comminute samples to a finely dispersed state in intermittent operation. Vibrating grinder VGE is designed for grinding samples from 250 to 750 ml with high productivity. The main purpose of VGE is the grinding of samples to an analytical size of less than 74 micrometers in the mining and metallurgical laboratories. See more: http://vibrotechnik.com/

Most popular related searches

laboratory grinding equipment

vibrating laboratory grinder

laboratory vibrating grinder

Characteristics VGE

Cup charging volume - 250 – 750 (cm3)
Number of cups - 1
Maximum material feed size - 20 (mm)
Vibration frequency - 1,500 (vibrations / minute)
Vibration amplitude - 16 (mm)
Comminution time - 1–30 (minutes)
Maximum material hardness 7 Mohs units
Electric motor power - 2,2 (kW)
50 Hz supply voltage - 380 (V)
Overall dimensions (Length х Width х Height) - 670х615х1225 (mm)
Weight - 350 (kg)
Grinding element material – tool steel / zirconium dioxide / wolfram carbide - HARDOX 500Q
