Model PL 125 -Welding Machine
FromTecnodue Srl

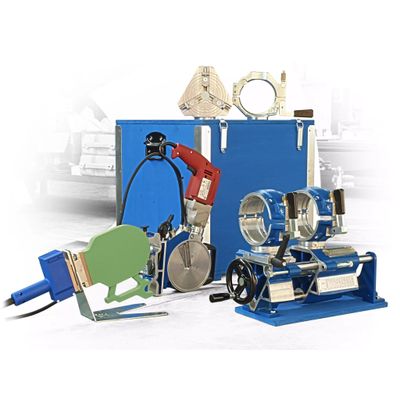

Main features: Manually operated butt welding machine for pressure pipes (aqueducts, irrigation systems, ...) in PE (polyethylene) and PP (polypropylene). The pivoting clamps allow the construction of segmented bends with different angles (max: 30°) in a wide range of diameters. It stands out for its extreme practicality and manageability, thanks to its low weight (16 kg) and small dimensions. It is supplied in a sturdy wooden transport box, containing all the reductions and accessories, as well as the miller (electric) and the heating plate.
Most popular related searches
Welding range: Straight welding, curves, fittings: 25 – 125 mm Tee, Croci, Breeches: NO
Maximum Applicable Force: 90 kgs
Standard voltage: 230V - 50Hz
Power consumption: 1.6kW - 6.9A
- Basic machine with manual movement.
- Two pivoting clamps d. 125 mm suitable for butt welding and the manufacture of segmented bends with different radius.
- Reductions for pivoting clamps d. 25 – 32 – 40 – 50 – 63 – 75 – 90 – 110mm.
- Removable electric mill with reversible blades and safety micro-switch.
- Removable PTFE coated heating mirror with adjustable temperature.
- Wooden crate for transport.
- Fittings clamp d. 125 mm for fittings and relative reductions range 25-110 mm.
- + Stub end device d. 25 – 125.
