Model PL 160 -Welding Machine
FromTecnodue Srl

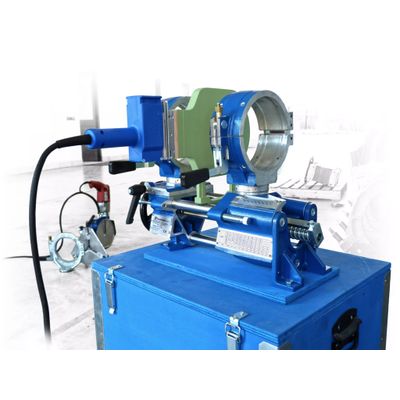

Main features: Manually operated butt welding machine for pressure pipes (aqueducts, irrigation systems, ...) in PE (polyethylene) and PP (polypropylene). The pivoting clamps allow the construction of segmented bends with different angles (max: 30°) in a wide range of diameters. It stands out for its extreme practicality and manageability, thanks to its low weight (18 kg) and small size. It is supplied in a sturdy wooden transport box, containing all the reductions and accessories, as well as the miller (electric) and the heating plate.
Most popular related searches
Welding range: Straight welding, curves, fittings: 40 – 160 mm. Tee, Croci, Breeches: NO
Maximum Applicable Force: 140 Kg
Standard voltage: 230V - 50Hz
Power consumption: 2.1kW - 9.1A
- Basic machine with manual movement.
- Two rotatable jaws d. 160 mm suitable for butt welding and the manufacture of sector bends with different radii of curvature.
- Reductions for rolling jaws d. 40 – 50 – 63 – 75 – 90 – 110 – 125 – 140 mm.
- Removable electric mill with reversible blades and safety micro-switch.
- Removable PTFE coated heating mirror with adjustable temperature.
- Wooden crate for transport.
- Right/Left Fittings clamp d. 160 mm for fittigins and relative reducitons 40-140 mm.
- + Stub end device d. 40-160mm.
