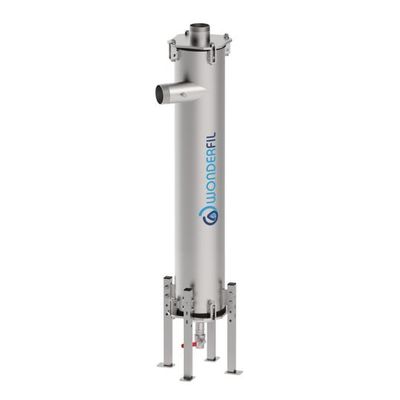

Wonderfil - Model Twisterfil -Hydrocyclonic Separators

The high removal efficiency (up to 99% on solids larger than 75µm) makes these separators the optimal solution for treating water from wells and canals or as protective pre-filtration.

They are often used upstream of our self-cleaning systems to reduce the load of suspended solids and preserve the filter element, lengthening the time interval before the automatic cleaning cycle.

Free of any moving parts, TWISTERFIL are continuous service filters and this makes them long-lasting and particularly convenient, as they are practically maintenance-free.

Normally equipped with manual drain valve, they can be equipped with a Drain Valve Kit (DVKIT), which allows automatic purging of the filter.

TWISTERFILs are delivered complete with manual drain valve.

• Continuous filtration, without interruptions during cleaning.
• Hydrocyclone
• Adjustable height.
• Surface treated with shot peening to eliminate residual particles.
• Passivation rebuilds the physical barrier against aggressive agents, ennobling the stainless steel.

• Flow rate : Up to 190 m³/h
• Nominal pressure (bar) : PN 10
• Maximum temperature (°C) : 60
• Salinity : < 10.000 ppm
• pH : 3-9
• Design code : PED 68/2014/EU
