Schultz - Vane Separators

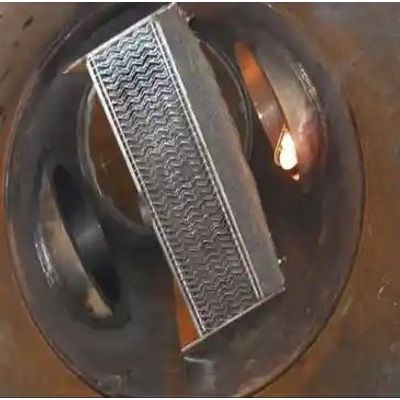

We utilize a double pocket vane for our vane separators and scrubbers. Vane Separators are designed to remove liquid particles from a vapor stream with high efficiency and low pressure drop. The liquid particles are captured and removed through rapid changes in direction through the vane flow profile. The liquid drops are too large and dense to make the quick zig-zag flow pattern and impact the vane blade wall, where a liquid film sheet is created, then channeled into the pockets away from the vapor flow path to be separated. These separators can be designed for either horizontal or vertical orientations.
